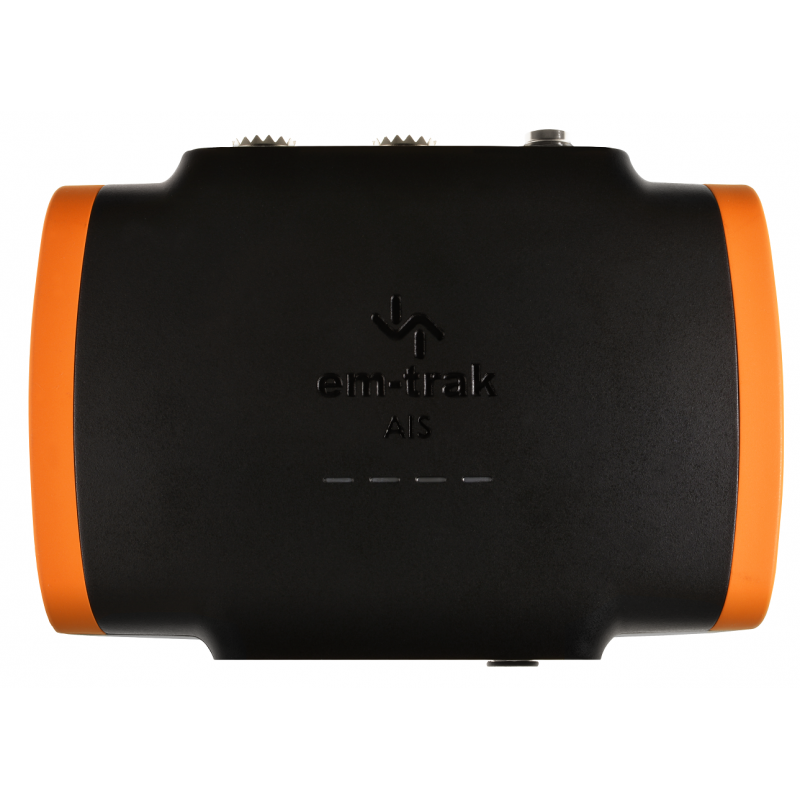

AIS Class B953 Transponder is a high transmit power (5W SOTDMA) Class B transceiver that is small, light-weight, yet delivers the very best AIS receive and transmit performance so you see more AIS information and targets at maximum range – all achieved with the least power consumption.

AIS Class B953 Transponder has an integrated VHF antenna splitter which enables the transceiver to share your existing VHF antenna without any loss of performance. With built in intelligent connectivity, integrated next generation GPS receiver & antenna and a unique FLEXI-FIT bracket system, safe and secure installation is simple.

AIS Class B953 Transponder

PRODUCT CODE:  430-0013

AIS Class B953 Transponder is a high transmit power (5W SOTDMA) Class B transceiver that is small, light-weight, yet delivers the very best AIS receive and transmit performance so you see more AIS information and targets at maximum range – all achieved with the least power consumption.

AIS Class B953 Transponder has an integrated VHF antenna splitter which enables the transceiver to share your existing VHF antenna without any loss of performance. With built in intelligent connectivity, integrated next generation GPS receiver & antenna and a unique FLEXI-FIT bracket system, safe and secure installation is simple.

PRODUCT FEATURES

• Certified AIS Class B – 5W SOTDMA
• Integrated high performance zero loss VHF antenna splitter
• Global Certification – USCG / FCC / Canada / Europe
• FLEXI-FIT™ bracket system for easy, convenient and secure installation
• Integrated high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray and damp proof (IPx6 & IPx7)
• Ruggedized – Protected from vibration, shock and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• Guaranteed connectivity and interoperability with any app, chart plotter, smart phone, tablet or PC
• NMEA0183 & NMEA2000
• Automated health and performance monitoring
• Silent Mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

IN THE BOX

• 1 x AIS Transceiver
• 1 x Power and Data Cable (2m)
• 1 x VHF Radio Accessory Cable (1m)
• 1 x FLEXI-FIT Mounting Bracket – Complete with Screws & Optional Fixing Tape

TECHNICAL SPECIFICATION

PHYSICAL AND ENVIRONMENTAL SPECIFICATION

• Size (w x h x d mm) – 150 x 115 x 45
• Weight – 415g
• Operating temperature – -25°C to +55°C
• Storage temperature – -25°C to +70°C
• Ingress protection – IPx6 and IPx7

ELECTRICAL SPECIFICATION

• Supply voltage – 12V or 24V DC
• Supply voltage range – 9.6V – 31.2V DC
• Average current (at 12V) – 245mA
• Peak current – 2.5A
• Average power consumption (at 12V) – 2.9Wv
• Galvanic isolation – NMEA 0183 inputs only, NMEA 2000, VHF antenna port

CONNECTORS

• VHF antenna – SO-239
• VHF radio – SO-239
• GNSS – TNC
• Power/NMEA 0183/silent mode – 12 way circular multipole
• NMEA 2000 – 5 way Micro-C connector
• USB – USB Micro-B

DATA INTERFACES

• NMEA 0183 – 2 x bi-directional ports
• NMEA 2000 – NMEA 2000 Ed 3.101, LEN=1
• USB – PC virtual com port for NMEA 0183 data

STANDARDS COMPLIANCE

• AIS standards – IEC 62287-2 Ed. 2. ITU-R M.1371.5
• Product safety standards – EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards – IEC 60945 Ed. 4
• Serial data interface standards – IEC 61162-1 Ed 5.0. IEC 61162-2 Ed 1.0
• NMEA 2000 – NMEA 2000 Ed 3.101
• GNSS performance standards – IEC 61108-1 Ed 2.0. IEC 61108-02 Ed 1.0

GNSS

• Systems supported – GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels – 72
• Internal/external antenna – Internal or optional external antenna
• Time to first fix from cold start – 26s

VHF TRANSCEIVER

• VDL access scheme – SOTDMA
• Operating frequency – 156.025MHz – 162.025MHz
• Channel bandwidth – 25kHz
• Receivers/transmitters – 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER) – -111dBm
• AIS transmitter power – 5W (+37dBm)

USER INTERFACE

• Indicators – Power, transmit timeout, error, silent mode
